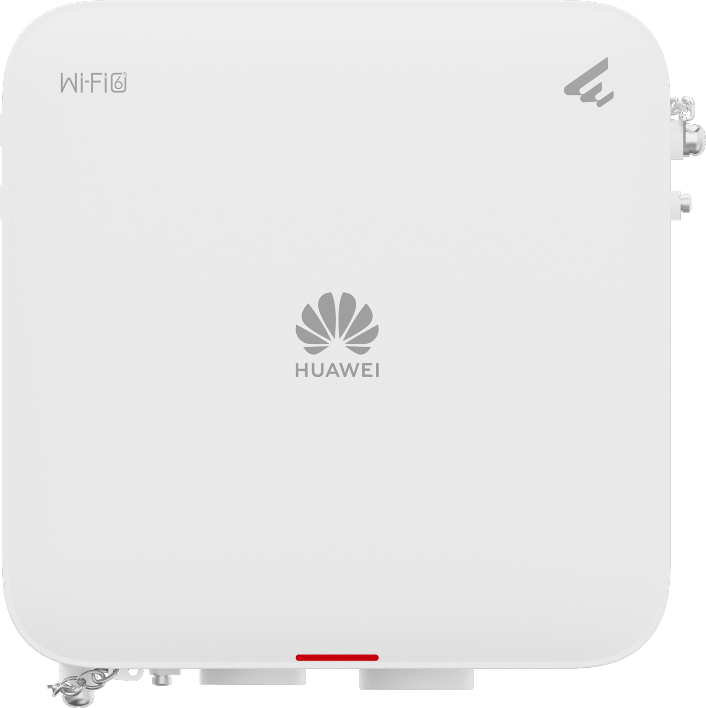

Huawei eKit AP761 Wi-Fi 6 Dual-Band Outdoor Access Point (IP68)
Order before 3pm for same-day dispatch. Delivery in 1–3 business days.
- Official warranty
- Fast delivery
- 14-day returns
- Expert support
Warranty & returns
Every product comes with the official manufacturer warranty. Unused items can be returned within 14 days.
Product details
Rugged Outdoor Wi-Fi 6 Built for Crowds
The Huawei eKit AP761 is a high-protection outdoor access point designed for stadiums, squares, pedestrian streets, amusement parks, resorts, campuses and parking areas. Its IP68-rated dustproof and waterproof housing withstands heavy rain and extreme weather, operating from -40°C to +65°C, while 6 kA surge protection on the service port helps guard against lightning-induced damage.
Dual 2x2 Wi-Fi 6 radios deliver a device rate of 1.775 Gbps, and powerful built-in directional antennas (10 dBi on 2.4 GHz, 11 dBi on 5 GHz) with high transmit power reach an optimal signal distance of up to 180 metres. It supports up to 1,024 users, with 120 recommended for the best experience.
For connectivity, the AP761 offers both a GE electrical port and an SFP optical port, so it can link over copper or fibre for long cable runs. It is powered by 802.3at/af PoE and mounts on walls or poles.
Key Features
- IP68 protection: fully dustproof and waterproof for outdoor use
- 180 m optimal signal distance: directional antennas for long reach
- Wi-Fi 6 dual-band: 1.775 Gbps device rate
- Up to 1,024 users: made for high-density outdoor venues
- GE + SFP ports: copper or fibre uplink
- 6 kA surge protection: extra resilience against lightning surges
Specifications
- Model: AP761 (part number 02355VFB)
- Wi-Fi standard: 2.4 GHz 802.11b/g/n/ax; 5 GHz 802.11a/n/ac/ac Wave 2/ax
- Radios: 2 (2.4 GHz 2x2, 5 GHz 2x2)
- Device rate: 1.775 Gbps
- Max channel bandwidth: 40 MHz (2.4 GHz), 80 MHz (5 GHz)
- Max transmit power: 28 dBm (2.4 GHz), 27 dBm (5 GHz)
- Antennas: built-in directional, 10 dBi (2.4 GHz) / 11 dBi (5 GHz)
- Max users: 1,024 (120 recommended)
- Optimal signal distance: 180 m
- Ports: 1x GE RJ45 (10/100/1000M), 1x GE SFP optical port
- Power: PoE 802.3at/af, 17.7W max consumption
- Protection: IP68; 6 kA surge protection on service port
- Dimensions: 69 x 200 x 200 mm
- Weight: 1.91 kg
- Installation: wall or pole
- Operating temperature: -40 to 65°C
