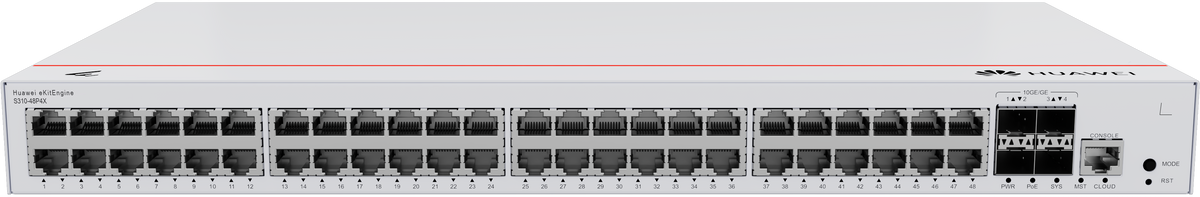

Huawei eKit S310-48P4X 48-Port Gigabit PoE+ Switch with 4x 10G SFP+
Order before 3pm for same-day dispatch. Delivery in 1–3 business days.
- Official warranty
- Fast delivery
- 14-day returns
- Expert support
Warranty & returns
Every product comes with the official manufacturer warranty. Unused items can be returned within 14 days.
Product details
High-Density, Stackable PoE+ Switching for Growing Networks
The Huawei eKit S310-48P4X is a 48-port PoE+ switch built for offices, hotels, schools and camera installations that need a large number of powered ports. All 48 Gigabit RJ45 ports deliver PoE+, sharing a 380W total PoE budget to run access points, IP cameras and VoIP phones directly from the switch.
Four 10GE SFP+ ports provide fast fibre or DAC uplinks to your gateway or core, while 176 Gbit/s of switching capacity and a 131 Mpps forwarding rate keep traffic moving under heavy load. Huawei iStack lets you combine up to four switches of the same series into one logical unit, making expansion and management straightforward.
The 1U metal chassis has a built-in AC power supply with ±6 kV surge protection and two intelligent fan modules that adjust speed to demand. It can be installed in a 19" rack, on a desk or on a wall.
Key Features
- 48 Gigabit PoE+ ports: power and connect a large number of devices
- 380W PoE budget: run APs, cameras and phones from one switch
- 4x 10GE SFP+ uplinks: high-speed backbone connections
- iStack: stack up to 4 switches and manage them as one
- 176 Gbit/s switching capacity: 131 Mpps forwarding rate
- Built-in AC power: with ±6 kV surge protection
Specifications
- Model: S310-48P4X (part number 98012385)
- RJ45 ports: 48x GE (10/100/1000M), all PoE+
- SFP+ ports: 4x 10GE (10G/1G)
- Total PoE budget: 380W
- Switching capacity: 176 Gbit/s
- Packet forwarding rate: 131 Mpps
- Stacking: iStack, up to 4 switches of the same series
- Power supply: built-in AC, 90–290V AC (45–65 Hz) or 190–290V high-voltage DC
- Power consumption: 49.44W typical; 64.7W max without PoE; 462.8W max at full PoE load
- Surge protection: ±6 kV differential and common mode
- Cooling: 2 built-in fan modules, intelligent speed adjustment, left-to-right airflow
- Chassis: metal, 1U
- Dimensions: 43.6 x 442 x 220 mm
- Weight: 3.24 kg
- Installation: rack, desk or wall
- Operating temperature: -5 to 50°C
