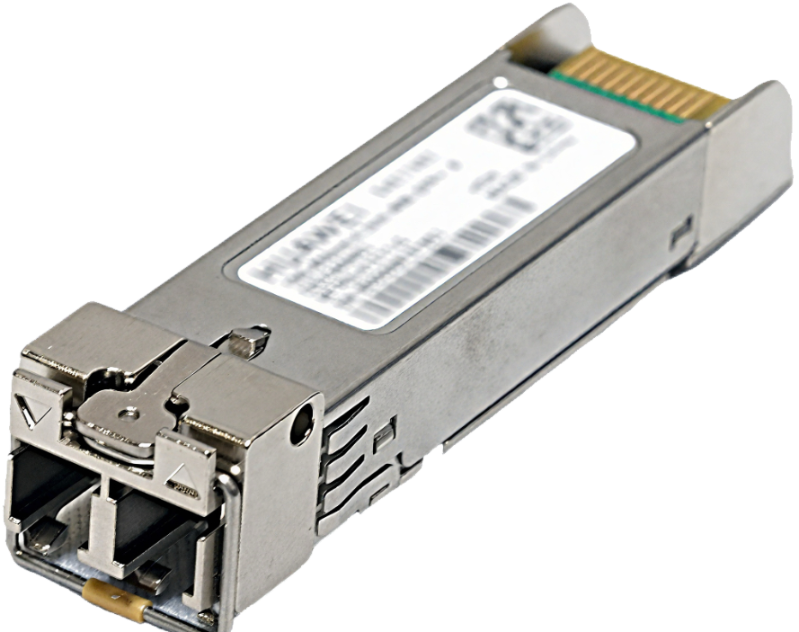

Huawei OMXD30000 10G SFP+ Multi-Mode Optical Transceiver (850nm, 300m, LC)
Order before 3pm for same-day dispatch. Delivery in 1–3 business days.
- Official warranty
- Fast delivery
- 14-day returns
- Expert support
Warranty & returns
Every product comes with the official manufacturer warranty. Unused items can be returned within 14 days.
Product details
Dependable 10G Fibre Links Across Your Building
The Huawei OMXD30000 is a 10GBASE-SR SFP+ optical transceiver for connecting switches, servers and storage over multi-mode fibre. Operating at 850 nm with a duplex LC connector, it carries 10 Gbit/s traffic up to 300 metres on OM3 fibre and up to 400 metres on OM4, ideal for links between floors, wiring closets and data-centre racks.
The module plugs straight into any compatible SFP+ port, such as the 10GE uplink ports on Huawei eKit and CloudEngine switches, and supports digital diagnostic monitoring (DDM), so you can check optical power and module health directly from the switch.
With an operating case temperature range of 0–70°C, it is built for reliable, continuous operation in network cabinets and equipment rooms.
Key Features
- 10GBASE-SR: 10 Gbit/s over multi-mode fibre
- Up to 300 m on OM3 / 400 m on OM4: covers most in-building links
- 850 nm, LC connector: standard short-reach optics
- Hot-pluggable SFP+: easy installation and replacement
- DDM supported: real-time optical diagnostics
- Genuine Huawei module: for Huawei switch compatibility
Specifications
- Model: OMXD30000 (part number 02318169)
- Form factor: SFP+
- Standard: 10GBASE-SR
- Data rate: 10 Gbit/s
- Center wavelength: 850 nm
- Fibre type: multi-mode (MMF)
- Connector: LC
- Transmission distance: 300 m (OM3), 400 m (OM4), 82 m (OM2), 33 m (OM1)
- Tx optical power: -7.3 to -1.0 dBm
- Rx sensitivity: -11.1 dBm
- Overload power: -1.0 dBm
- Minimum extinction ratio: 3.0 dB
- DDM: supported
- Operating case temperature: 0 to 70°C
