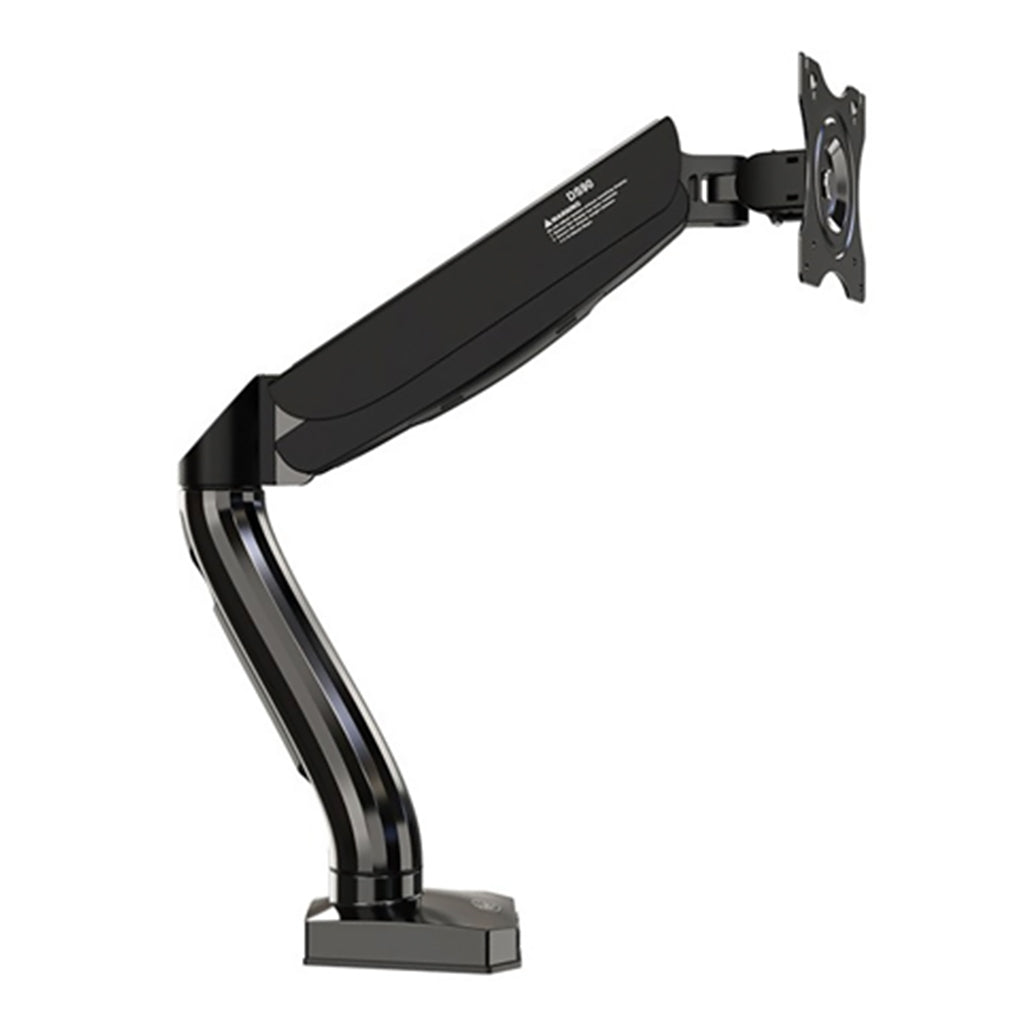

Kaloc DS90 Gas Spring Monitor Arm – Adjustable Height & Tilt (17"–32")
Order before 3pm for same-day dispatch. Delivery in 1–3 business days.
- Official warranty
- Fast delivery
- 14-day returns
- Expert support
Warranty & returns
Every product comes with the official manufacturer warranty. Unused items can be returned within 14 days.
Product details
Push, Pull, Perfect — No Knobs Required
The Kaloc DS90 swaps the usual friction hinges for an internal gas spring, so lifting or lowering your 17"–32" monitor takes one hand and stays exactly where you leave it — no re-tightening screws every time you adjust. Height travels from 100mm to 420mm, and the telescopic arm extends out to 542mm, giving you real reach across a wide desk.

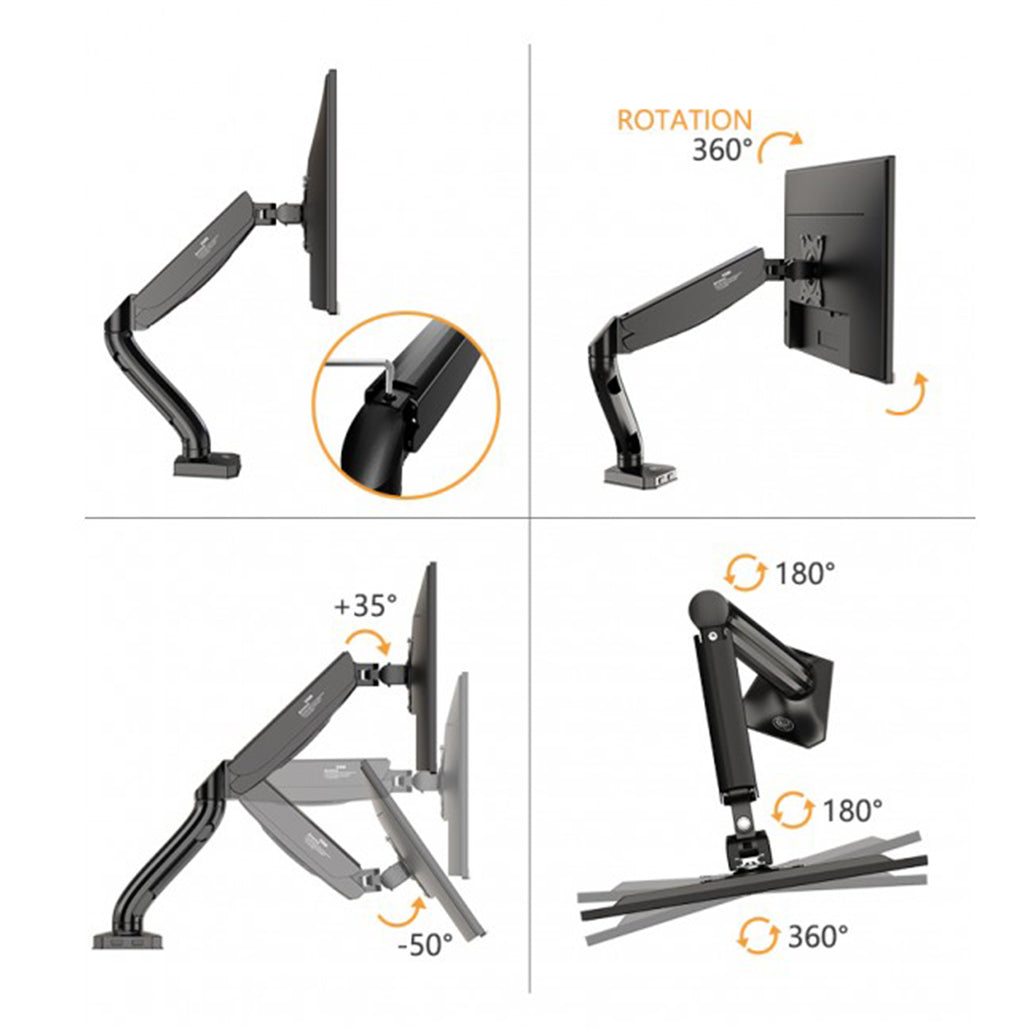

Tilt runs from +35° to -50°, enough range to kill overhead glare or angle the screen down for a standing desk. A 3-axis rotation joint handles the rest, letting you spin the display into portrait mode or fine-tune the angle without fighting the mechanism.
Installation is flexible: punch-mount into a desktop hole between 20–60mm, or clamp onto any desk edge under 95mm thick with at least 35mm of depth. Cables route through a hidden internal channel, keeping the whole setup looking clean front and back.
Key Features
- Internal Gas Spring: One-hand height adjustment that holds position without manual tightening.
- Long Reach: Telescopic extension up to 542mm for wide desks.
- Wide Tilt Range: +35° to -50° for glare control and standing-desk angles.
- Two Mounting Options: Grommet (20–60mm hole) or clamp (<95mm thick, >35mm deep desk edge).
Specifications
- Compatible screen size: 17" – 32"
- Adjustment mechanism: Internal gas spring
- Tilt range: +35° to -50°
- Height adjustment: 100mm – 420mm
- Telescopic extension: Up to 542mm
- Rotation: 3-axis adjustable
- Mounting: Grommet (20–60mm hole) or clamp (<95mm thickness, >35mm depth)
- Cable management: Hidden internal routing
- Arms: Single monitor
