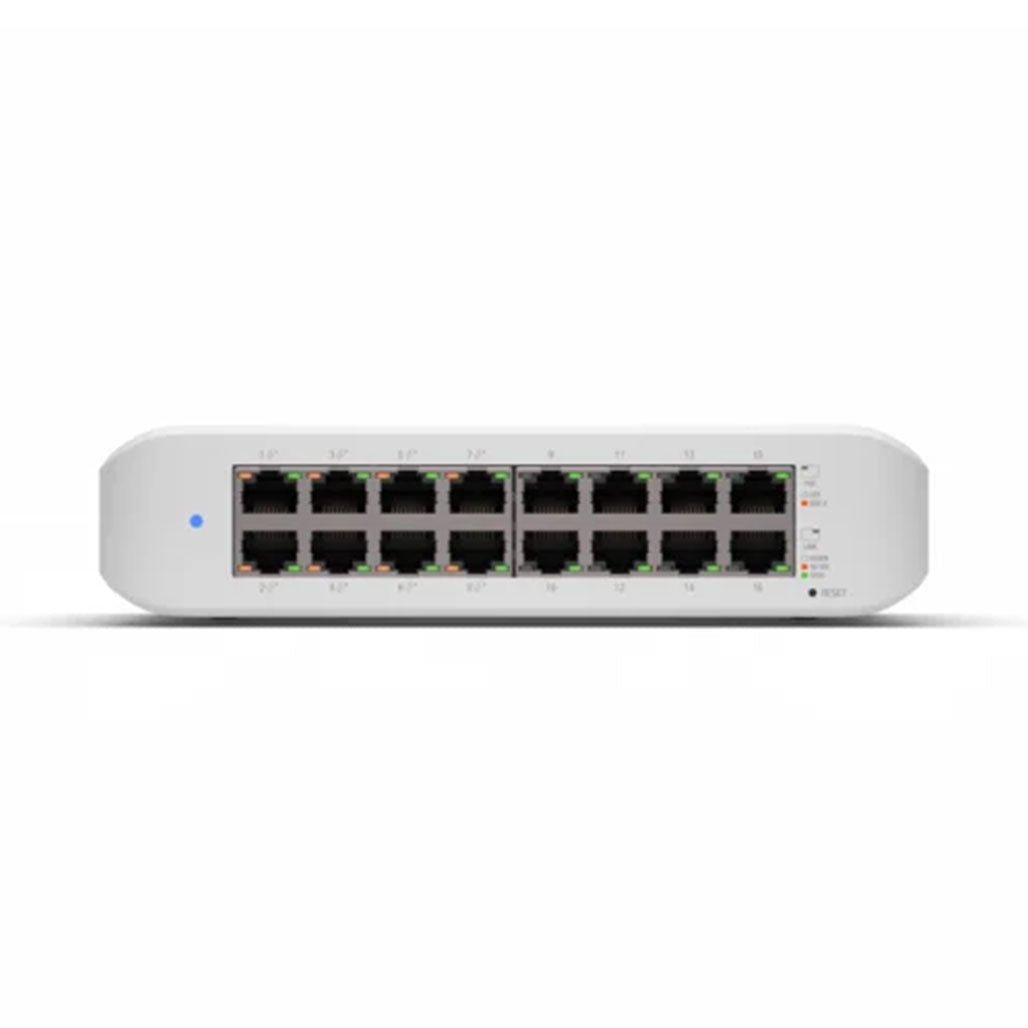

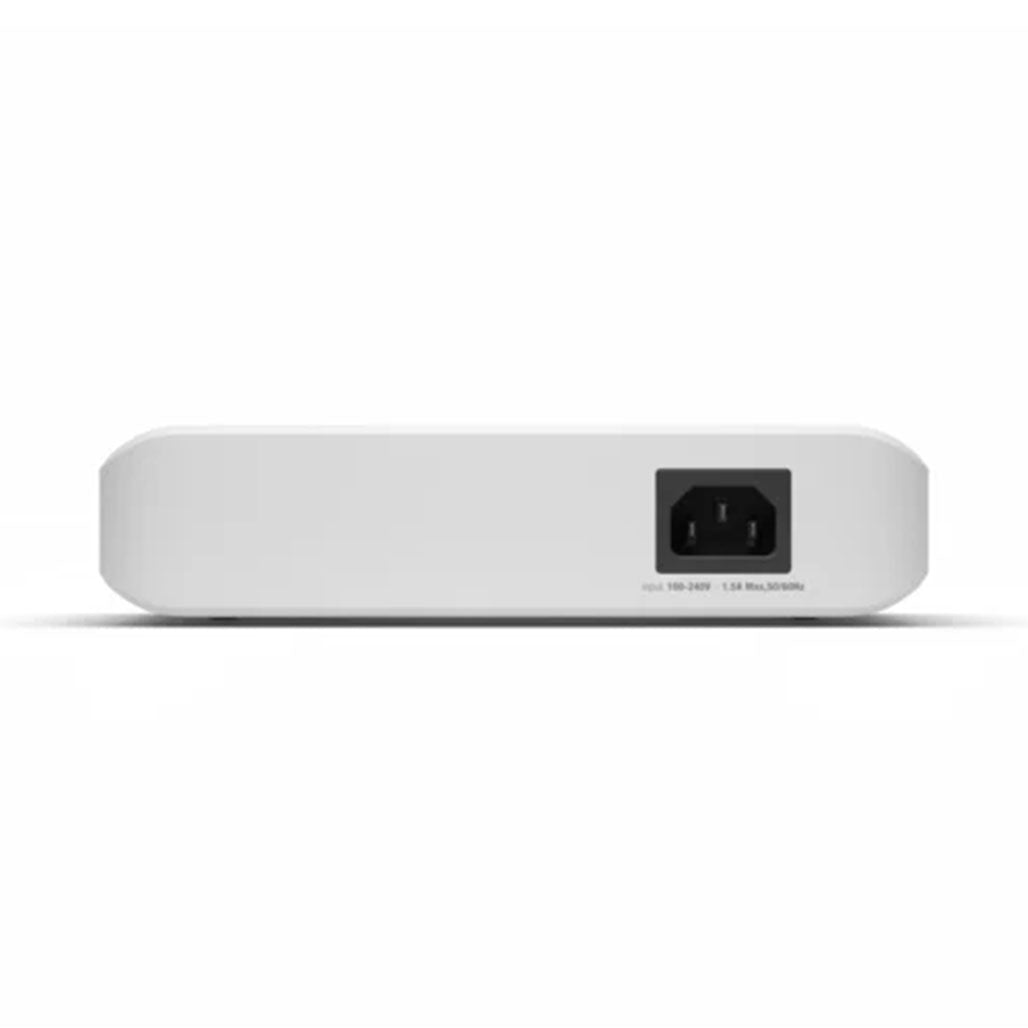

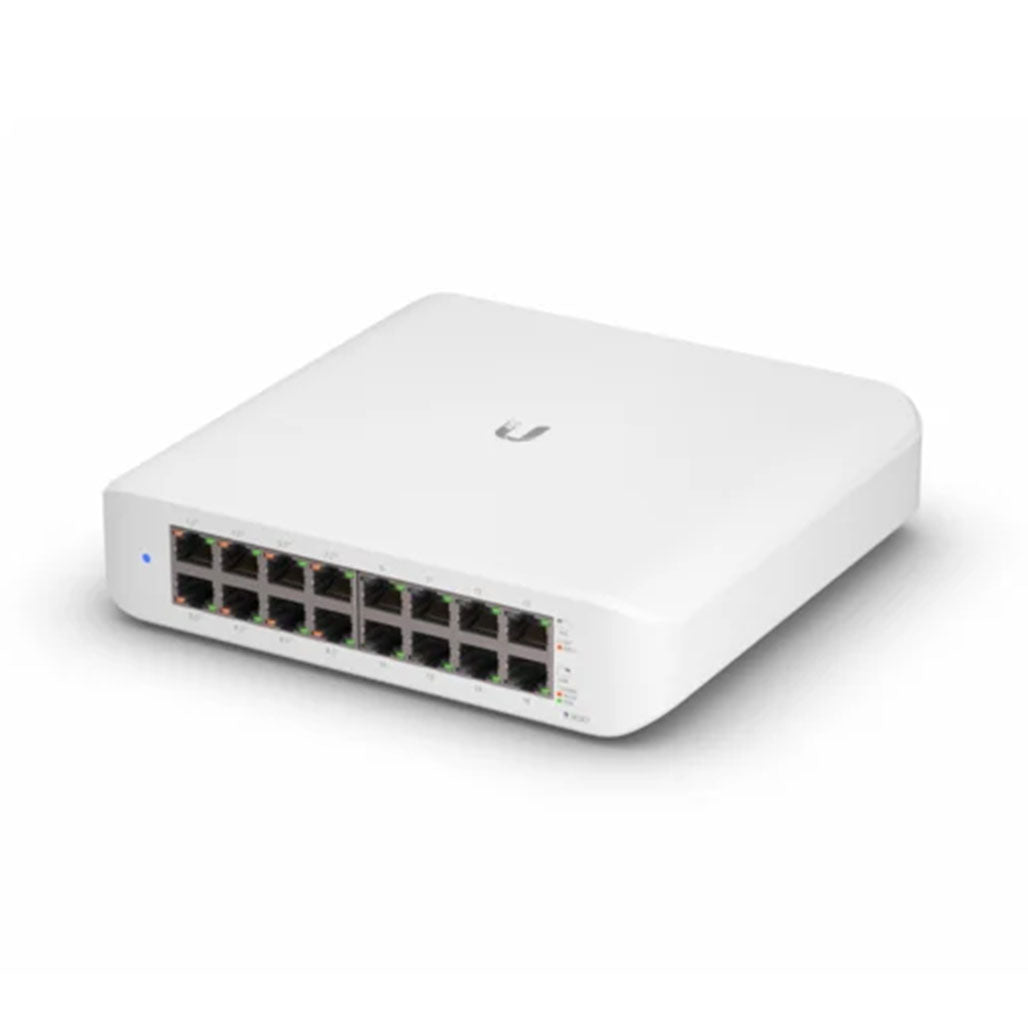

Ubiquiti UniFi Switch Lite 16 PoE - 16-Port Gigabit Managed PoE+ Switch

16 Gigabit Ports in a Compact, Fanless Body

The UniFi Switch Lite 16 PoE gives growing homes and small businesses plenty of wired capacity without needing a server rack. It packs sixteen Gigabit RJ45 ports into a compact desktop chassis, with eight of them supplying PoE+ power to access points, IP cameras, doorbells and VoIP phones.

A 45W total PoE budget, with up to 32W available on a single port, covers typical setups of access points and cameras. The power supply is built in, so there's no bulky external adapter, and the fanless design keeps the switch quiet enough for offices and living spaces. It can sit on a desk or shelf, or be wall mounted.

Management is handled in the UniFi Network application alongside your other UniFi gear, where you can create up to 1,000 VLANs, monitor traffic and control PoE on each port.

Key Features

• 16 Gigabit RJ45 ports: room to connect a whole office
• 8 PoE+ ports: power APs, cameras and phones directly
• 45W PoE budget: up to 32W on a single port
• Internal power supply: no external adapter to manage
• Fanless, compact design: quiet desktop or wall installation
• UniFi managed: VLANs, monitoring and per-port PoE control

Specifications

• Model: USW-Lite-16-PoE
• Ports: 16x GbE RJ45 (1G/100M/10M)
• PoE ports: 8x PoE+, 32W max per port
• Total PoE availability: 45W
• Switching capacity: 32 Gbps
• Non-blocking throughput: 16 Gbps
• Forwarding rate: 24 Mpps
• MAC table size: 8,000
• Supported VLANs: 1,000
• Power supply: internal 60W AC/DC, 100–240V AC
• Max power consumption: 15W excluding PoE, 60W including PoE output
• Form factor: compact desktop, wall mountable
• Dimensions: 192 x 185 x 44 mm
• Weight: 1.2 kg
• Enclosure: polycarbonate
• Operating temperature: -15 to 40°C
