Ubiquiti UniFi Switch Pro 24 PoE - 24-Port Layer 3 PoE Switch with 10G SFP+
Order before 3pm for same-day dispatch. Delivery in 1–3 business days.
- Official warranty
- Fast delivery
- 14-day returns
- Expert support
Warranty & returns
Every product comes with the official manufacturer warranty. Unused items can be returned within 14 days.
Product details
Professional Layer 3 Switching With 400W of PoE

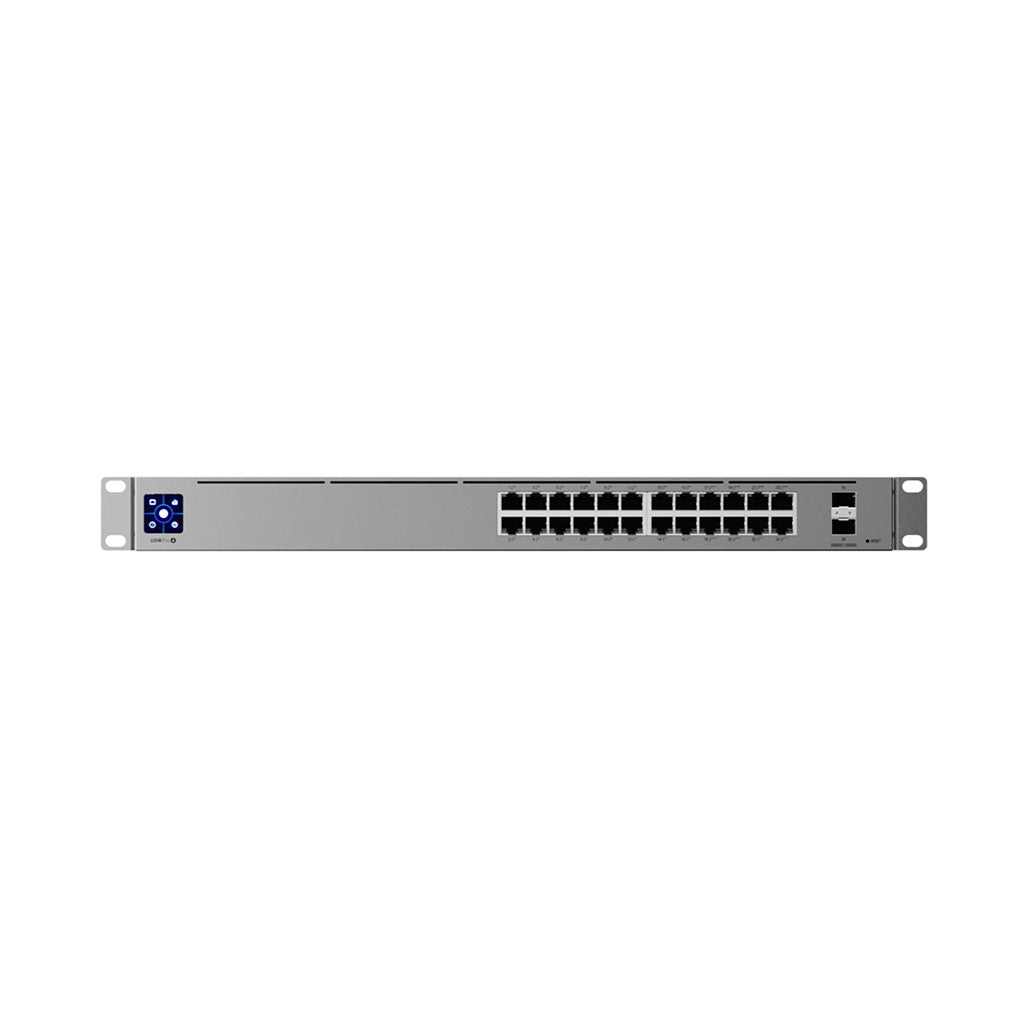

The UniFi Switch Pro 24 PoE is a 1U rackmount switch built for businesses, hotels, schools and multi-camera installations. It offers 24 Gigabit RJ45 ports, all of them PoE-capable: sixteen deliver PoE+ and eight step up to PoE++ (802.3bt) for higher-power devices such as pan-tilt cameras, large access points and displays.
A generous 400W total PoE budget powers a full rack of devices, and two 10G SFP+ ports provide fast fibre or DAC uplinks to your gateway or core switch. Layer 3 features including inter-VLAN routing, static routes, DHCP server and DHCP relay let it handle local routing without sending all traffic back to the router.
A 1.3" touchscreen on the front panel shows status at a glance, and the internal 450W power supply can be backed up by a UniFi USP RPS for extra resilience. Setup and monitoring are done in the UniFi Network application.
Key Features
- 24 Gigabit PoE ports: 16 PoE+ and 8 PoE++
- 400W PoE budget: power cameras, APs and phones at scale
- 2x 10G SFP+ uplinks: high-speed fibre or DAC connections
- Layer 3 switching: inter-VLAN and static routing, DHCP server and relay
- 1.3" touchscreen: quick status and port information
- RPS support: redundant power backup with USP RPS
Specifications
- Model: USW-Pro-24-PoE
- RJ45 ports: 24x GbE (16 PoE+, 8 PoE++) (1G/100M/10M)
- SFP+ ports: 2x 10G SFP+ (10G/1G)
- Total PoE availability: 400W
- Switching capacity: 88 Gbps
- Non-blocking throughput: 44 Gbps
- Forwarding rate: 65 Mpps
- MAC table size: 16,000
- Supported VLANs: 1,000
- Layer 3 features: DHCP server, DHCP relay, inter-VLAN routing, static routing
- Display: 1.3" touchscreen
- Power supply: internal 450W AC/DC, 100–240V AC; USP RPS DC backup supported
- Max power consumption: 50W excluding PoE, 450W including PoE output
- Form factor: 1U rackmount (400–1200 mm rack depth)
- Dimensions: 442 x 285 x 44 mm
- Weight: 4.3 kg (4.4 kg with brackets)
- Enclosure: SGCC steel
- Operating temperature: -5 to 40°C
